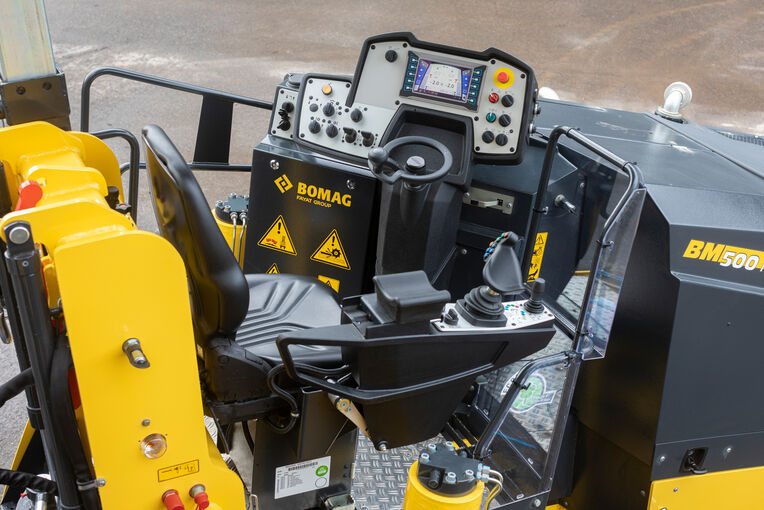

The second generation of compact planers are setting the standards when it comes to ergonomics and productivity. Thanks to the 45°-swivel comfort seat, the completely overhauled operating concept provides a good overview – of both the loading truck and the left side plate and milling edge. At the heart of the new operating concept is the 7-inch full graphic leveling and operating panel with intuitive design. The swivel angle of the conveyor belt has been increased again to 2 x 30° with the same belt width. It can be folded hydraulically to the optimum transport
With BOMAG TELEMATIC, every machine is just a mouse click away. You can retrieve location and operating data at any time and manage your fleet more efficiently. Automatic reports provide full transparency on fuel consumption, idle times, and the potential for fleet optimisation. BOMAG TELEMATIC also includes real-time monitoring of pending maintenance and service history.
Quickchange milling drum standard.
Features: Maximum milling performance for an average milling depth at average speed
Application: Removing asphalt strips, creating duct trenches, road repairs, and universal surfacing work
Less wear with BOMAG milling drums and variable cutting speed.
The high density of the cutting tools creates a finely structured surface texture. Fine milling drums are used to increase skid resistance, prepare sites for thin pavement layers, remove road markings, and for fine milling floor coverings in halls.
Grouped service points.
Maximum productivity, height adjustable, broad swivel range, plus variable belt speed for greater flexibility.
The milling performance increases by 30% due to less crushing of the material. At the same time, the increased advance rate reduces fuel consumption and cutting tool wear. POWER DRUMS are used for planing particularly hard materials and for the complete removal of asphalt pavements.

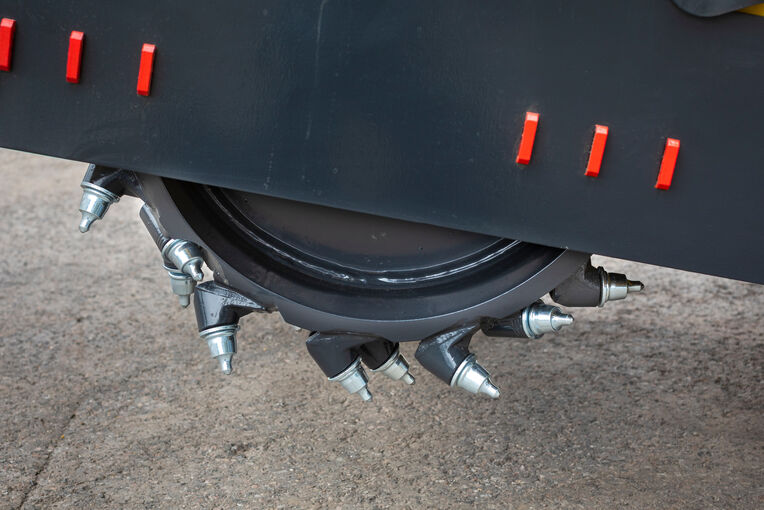

A planer must mill accurately. BOMAG milling drums feature innovative geometry. The tools are optimally arranged to ensure uniform, low vibration cutting. Due to the shell thickness, the milling drum acts like a flywheel transferring far fewer vibrations to the machine than a conventional drum. This increases planer durability.
Air intake from above.
Asphalt milling is a method for removing specified layers of asphalt road pavements.
Our machines contain both power and performance. To deliver maximum productivity we invest heavily in perfecting our milling drums, holder systems and cutting tools.
This adds more cutting tools. Due to the high density of the cutting tools, fine milling creates a very fine surface texture and a low thickness up to 40 mm / 1.57 inch. Fine milling drums are used to increase the skid resistance of smooth road surfaces which have been “polished” by traffic. They can at the same time remove light ruts and uneven areas. In addition, these drums can be used to prepare sites for laying thin layers, to remove road markings and for fine milling of floor surfaces inside buildings.
Cutting power per tool increases and pulverised material fragments are larger. Because of the reduced crushing effect in the milled material, energy is saved which can lead to a faster travel speed or lower fuel consumption. At the same time, the cutter has lower wear because the faster advance rate means the impact time of the cutting tools is reduced and they generate less heat. POWER DRUMS not only offer milling performance which is up to 30% higher than standard milling drums, they also provide lower wear and reduced fuel consumption. The line spacing of the cutters on the POWER DRUM is relatively wide and the surface structure created by milling is rough and coarse. POWER DRUMS are used to plane hard materials and for complete removal of asphalt pavements.
They can be used for multiple applications on a variety of milling jobs. The standard milling drum can be used for complete removal of whole road surfaces as well as for planing individual layers. The applications for standard planers extend from the removal of small sections of road (patches) to major surfacing work and road repairs, including milling duct trenches. The milled surface is an ideal base for laying new asphalt layers.
Further data on request / All data subject to change / Illustrations may contain optional features
Longevity and low maintenance are two essential design principles at BOMAG implemented in the smallest details, reducing service costs and non-productive time to a minimum. With BOMAG, all components for servicing are well positioned and freely accessible. This applies to tanks, service points in the engine compartment and work on the milling drum.
When you see BOMAG on a machine, you can expect real quality. This applies both to our original parts and our service. Opting for a BOMAG means choosing top quality every time. Original parts and service are there to protect your investment. They ensure 100% machine power and availability – and ultimately the productivity and cost-effectiveness of your company. BOMAG offers a range of service products to keep you on the road.
