The cold planer BM 1200/35-2 with enhanced swivelling mechanism is designed for the selective milling of road and ground surfaces. Its clear arrangement and maneuvrability make it particularly suitable for country roads, inner-city work and roundabouts. The maximum milling depth of 13 in and the lateral arrangement of the milling roller allow for milling right up to the curb or walls. The rear right-hand track drive can be automatically swivelled to a position in front of the milling drum for this purpose.
Components with external filtration and cooling ensure safe temperature management and long life. Excellent access to all central service points.
350 HP engine power makes this the highest performance planer in its class. The optimized geometry of the milling drum, the low resistance profile of the exchange tool holders, and smart material transportation deliver maximum productivity.
The long, height-adjustable conveyor belt can be pivoted by 45 degrees to either side. This ensures high flexibility in combination with the truck.
Features: Maximum milling performance for an average milling depth at average speed
Application: Removing asphalt strips, creating duct trenches, road repairs, and universal surfacing work
A fully enclosed and noise-insulated engine compartment. Waste air and exhaust fumes are vented without obstructing the driver and operating noise is dampened.
With BOMAG TELEMATIC, every machine is just a mouse click away. You can retrieve location and operating data at any time and manage your fleet more efficiently. Automatic reports provide full transparency on fuel consumption, idle times, and the potential for fleet optimization. BOMAG TELEMATIC also includes real-time monitoring of pending maintenance and service history.
A large plastic water tank provides guaranteed rust-free water and prolongs the life of pumps, filters, etc.
The BMS 15 holder system is slimmer than other systems. This leads to lower resistance, which reduces fuel consumption and improves the advance travel rate.
The inner and outer conveyor belts can be rapidly disassembled, simplifying service work.
The high density of the cutting tools creates a finely structured surface texture. Fine milling drums are used to increase skid resistance, prepare sites for thin pavement layers, remove road markings, and for fine milling floor coverings in halls.
Traction and stability in combination with low wear. 50% higher transport speed (7.5 km/h) reduces unproductive downtime.
A fully vibration-insulated work place for comfortable, fatigue-free working plus swivel seat, a perfect view to the milling edge and over the entire site. An easy to understand operating concept for fast, high-quality work.

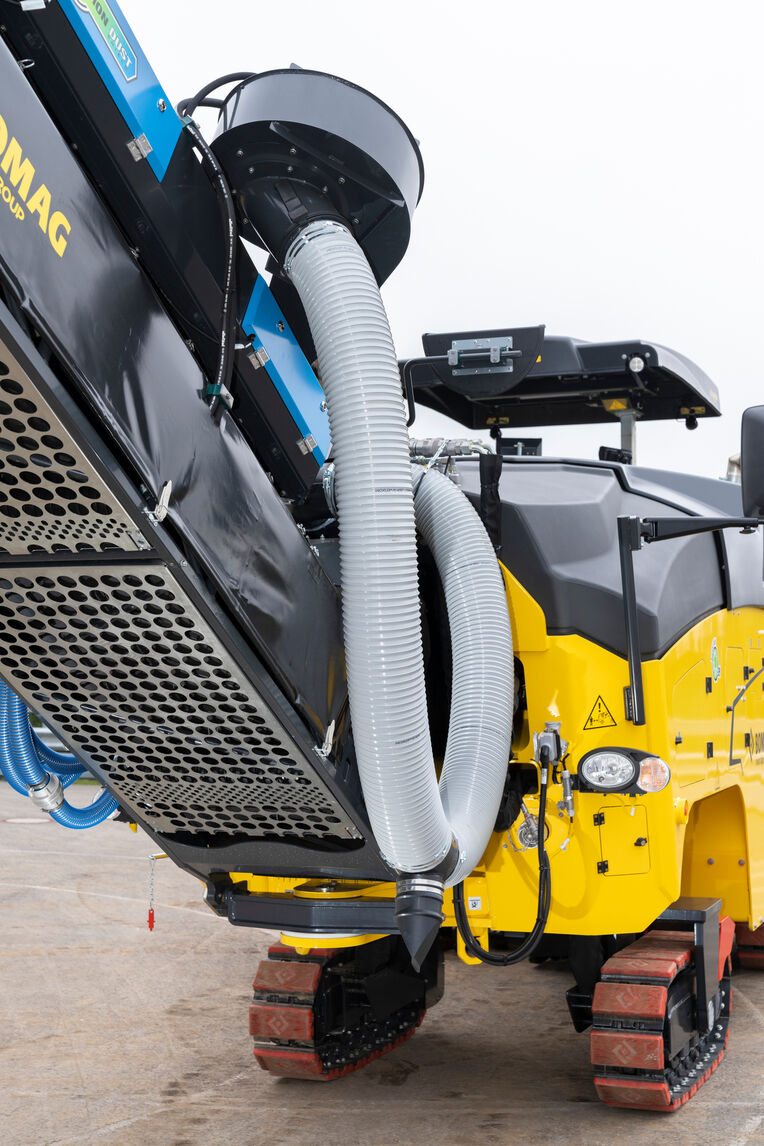

Dust extraction takes place via a hose with enlarged cross-section and reduced suction speed, resulting in less operating noise. It also only picks up fine dust for unrestricted vision on the driver’s side.
The milling performance increases by 30% due to less crushing of the material. At the same time, the increased advance rate reduces fuel consumption and cutting tool wear. POWER DRUMS are used for planing particularly hard materials and for the complete removal of asphalt pavements.
The standard hydraulically-folding conveyor belt greatly simplifies transportation.
Please enter your location
Asphalt milling is a method for removing specified layers of asphalt road pavements.
Our machines contain both power and performance. To deliver maximum productivity we invest heavily in perfecting our milling drums, holder systems and cutting tools.

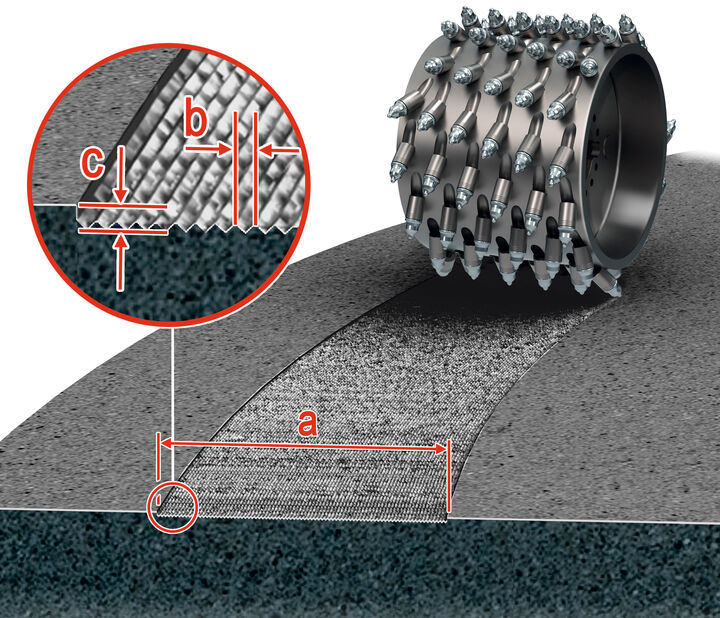

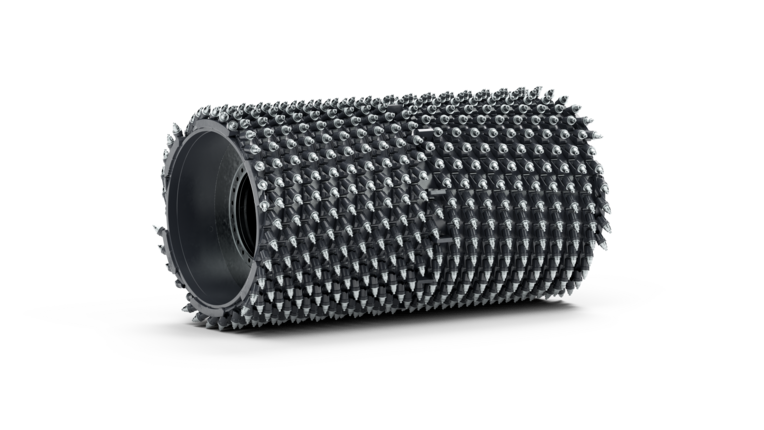

This adds more cutting tools. Due to the high density of the cutting tools, fine milling creates a very fine surface texture and a low thickness up to 40 mm / 1.57 inch. Fine milling drums are used to increase the skid resistance of smooth road surfaces which have been “polished” by traffic. They can at the same time remove light ruts and uneven areas. In addition, these drums can be used to prepare sites for laying thin layers, to remove road markings and for fine milling of floor surfaces inside buildings.

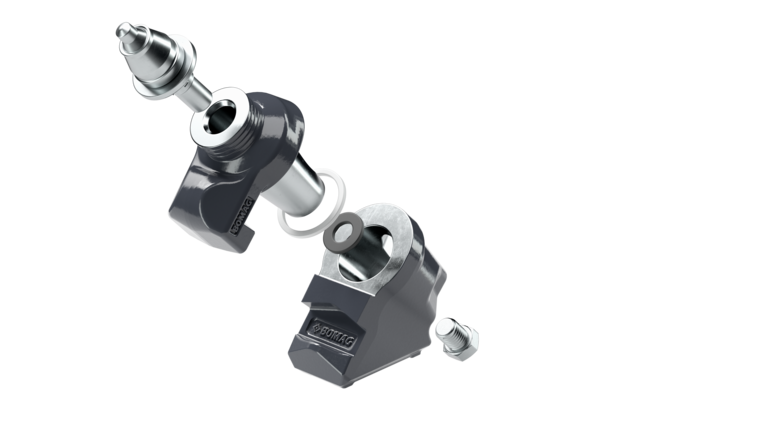

The BMS 15 L holder system is slimmer than other systems. The effect is a lower resistance which reduces fuel consumption and improves the advance travel rate.

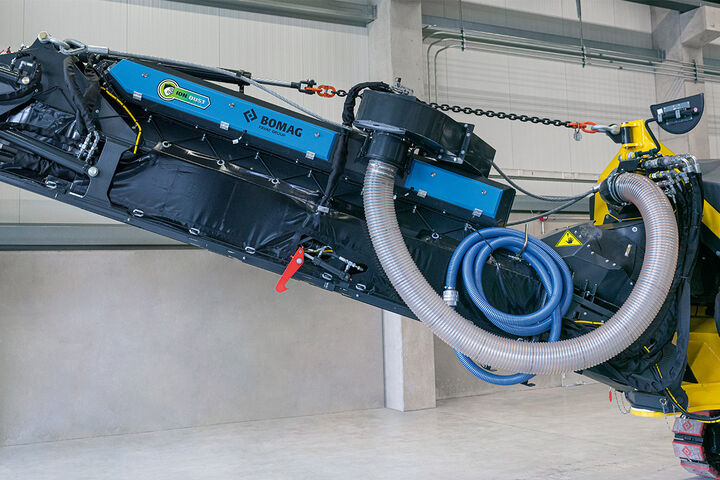

By using the Ion Dust Shield, the fine particulate pollution produced during milling can be reduced by more than 80%. Unlike conventional dust extraction systems, the fine particulate matter is not simply extracted in the working area and blown out again on the conveyor belt, but bound by means of intelligent technology. This causes the fine particulate matter to clump permanently into coarse particles which can then be transported away with the milled material.

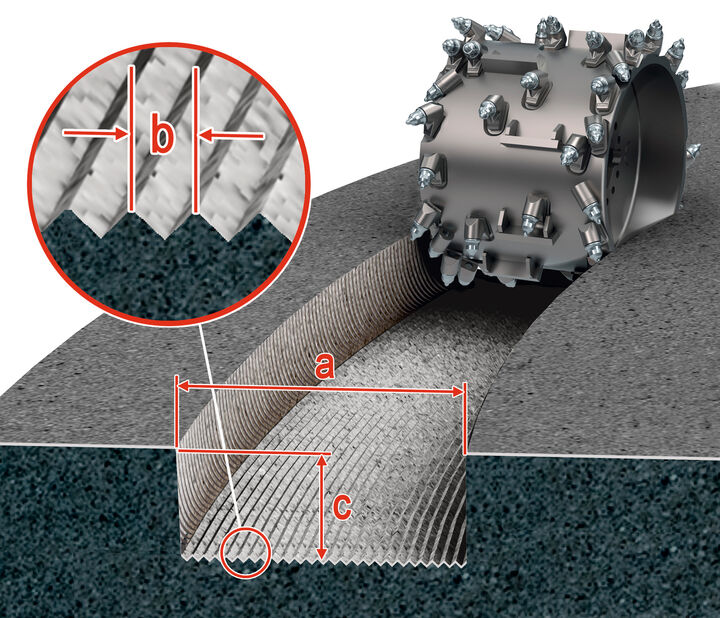

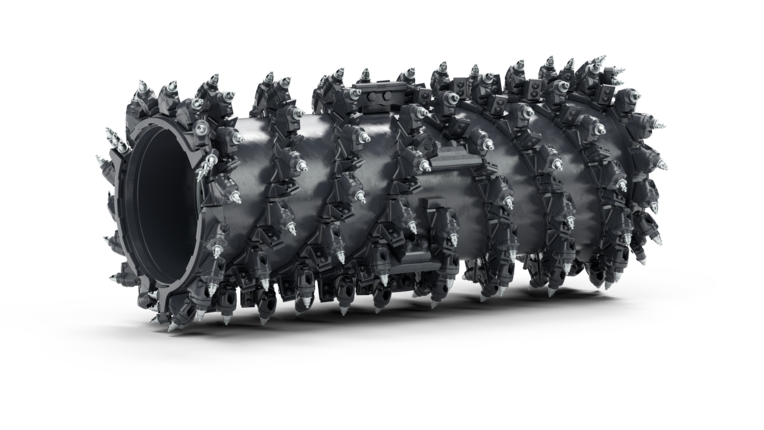

Cutting power per tool increases and pulverised material fragments are larger. Because of the reduced crushing effect in the milled material, energy is saved which can lead to a faster travel speed or lower fuel consumption. At the same time, the cutter has lower wear because the faster advance rate means the impact time of the cutting tools is reduced and they generate less heat. POWER DRUMS not only offer milling performance which is up to 30% higher than standard milling drums, they also provide lower wear and reduced fuel consumption. The line spacing of the cutters on the POWER DRUM is relatively wide and the surface structure created by milling is rough and coarse. POWER DRUMS are used to plane hard materials and for complete removal of asphalt pavements.

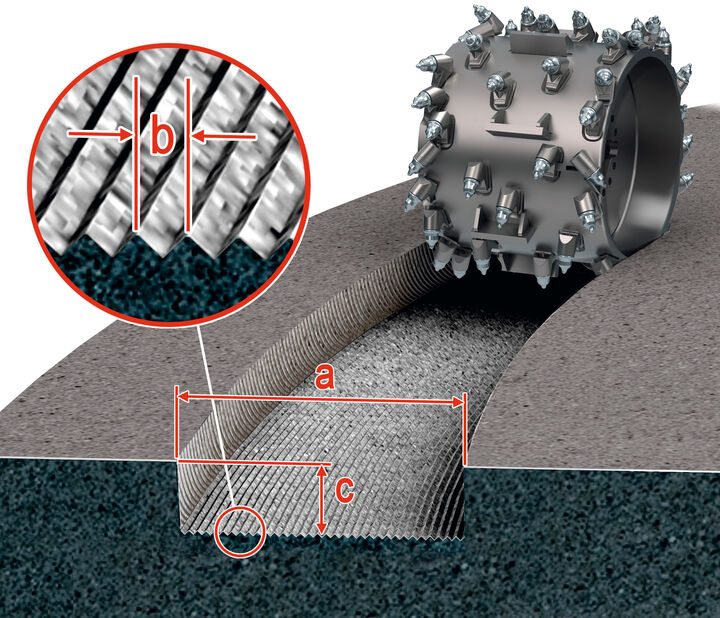

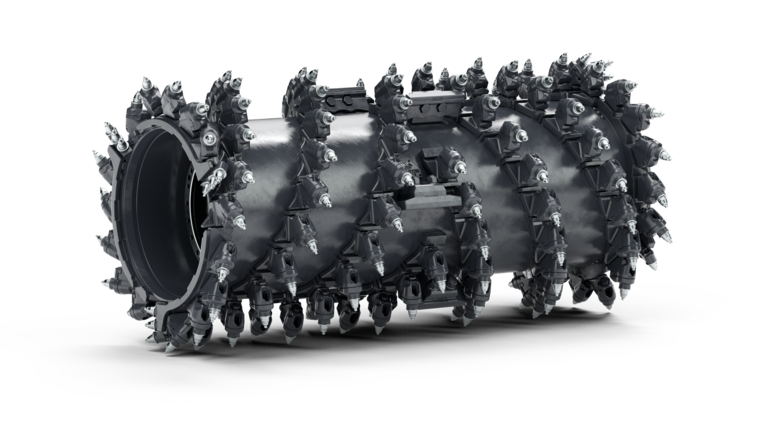

They can be used for multiple applications on a variety of milling jobs. The standard milling drum can be used for complete removal of whole road surfaces as well as for planing individual layers. The applications for standard planers extend from the removal of small sections of road (patches) to major surfacing work and road repairs, including milling duct trenches. The milled surface is an ideal base for laying new asphalt layers.
Call up the status of your vehicles from your computer or tablet. Full transparency at all times for your machine fleet with the new BOMAG TELEMATIC app for PC, iOS and Android devices.Read more
Further data on request / All data subject to change / Illustrations may contain optional featuresYou can find more information regarding the CO2 emissions of all machines here.
Longevity and low maintenance are two essential design principles at BOMAG implemented in the smallest details, reducing service costs and non-productive time to a minimum. With BOMAG, all components for servicing are well positioned and freely accessible. This applies to tanks, service points in the engine compartment and work on the milling drum.
Peace of mind is priority number one: This not only applies to our machines. Protect yourself from unexpected costs even after expiry of the legal warranty. With our extended warranties, you receive all-round protection for up to 60 months.
When you see BOMAG on a machine, you can expect real quality. This applies both to our original parts and our service. Opting for a BOMAG means choosing top quality every time. Original parts and service are there to protect your investment. They ensure 100% machine power and availability – and ultimately the productivity and cost-effectiveness of your company. BOMAG offers a range of service products to keep you on the road.Learn more
