Pneumatic tyred roller BW 24 RH: Conventional compaction technology.

Flexible weight adjustment.

Using water ballast or quickly interchangeable plates.

Maximum convenience and easy operation.

Spacious ROPS/cabin, swivel seat, highly responsive travel lever.

Always in the picture with BOMAG TELEMATICS.

Intelligent Fleet Management.

Uniform compaction.

Axle and wheel hub oscillation for optimal results even on uneven surfaces.

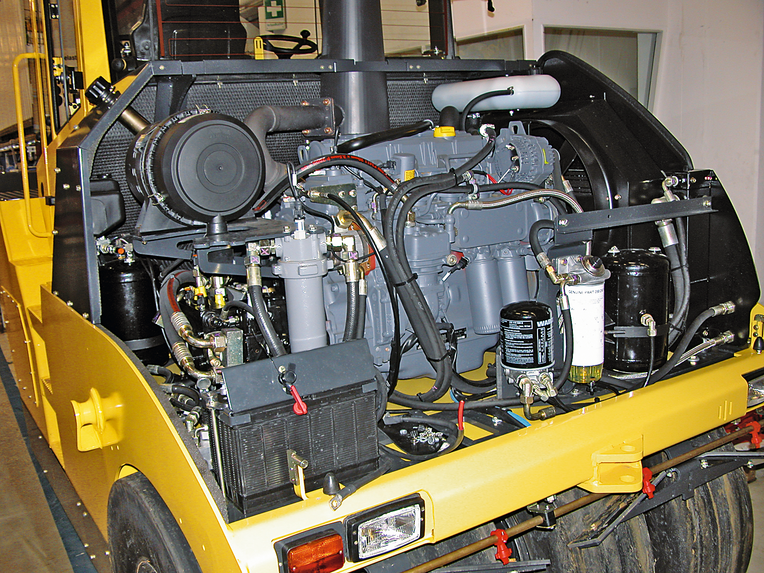

Powerful drive.

Reliable Deutz engine

Pneumatic tyred rollers

Pneumatic tyred roller BW 24 RH: Conventional compaction technology.

Emission stage Stage IIIa / TIER3

Weight 8.800 kg

Working width 2.042 mm

Info

Overview

Asphalt compaction with BOMAG expertise.

BOMAG pneumatic tyred rollers achieve top compaction quality thanks to the kneading and rolling effect of the wheels. Compaction is uniform, producing excellent surface finish. The weight of the rubber wheels generate vertical pressure, coupled with horizontal forces, which are applied in all directions around the wheels.

Request an offer Receive a non-binding offer

Documents

Datasheet Datasheet_BW24_27RH_PRE53800010_SA06

Brochure Brochure_BW24-27RH_PRE106346_2601

View all

Gallery

Please enable the use of cookies to view this content

Details on the use of cookies can be found in our Privacy Policy

At a glance

Fields of application

Asphalt compaction – to increase load-bearing capacity and wear resistance.

Surface dressing; highway and airfield construction and maintenance; special surfacing materials; proof rolling; lime and cement-stabilised soils. The compaction and kneading effect of the pneumatic tyres results in excellent surface sealing.

With ample ballast space, quick-change steel and concrete slabs, and an optional water tank, BOMAG pneumatic tyred rollers are the all-rounders on any construction site.

The spacious ROPS cab, easily rotatable and sliding driver’s seat, highly responsive travel control and rocker brake with the same width as the driver’s stand provide maximum productivity and operating convenience.

With BOMAG Fleet Management, every machine is just a mouse click away. Our modern software solution not only optimises operation of your construction machinery, but also maximises the UPTIME of your fleet.

Always in the picture with BOMAG TELEMATICS.

Two steering pivots with axle and wheel-hub oscillation at the front easily compensate for uneven ground.
The optional tyre inflation control system automatically balances the pressure in all tyres.

Reliable Deutz engine
2 hydraulic motors
2 multi-disc brakes for parking and dynamic service brake

Technologies

With BOMAP, you can monitor the results of your soil and asphalt compaction in real time, regardless of the manufacturer.

BOMAP

Documentation

Documents

Datasheet Datasheet_BW24_27RH_PRE53800010_SA06

Brochure Brochure_BW24-27RH_PRE106346_2601

Brochure JobReport_Indonesien_PRE108101_2006

Specifications

Standards

Operator's platform with:
- two steering wheels
- Laterally sliding seat
Control panel for
- Hour meter
- Engine oil pressure
- Engine temperature
- Air filter vacuum
- Charge control
- Hydraulic oil filter
- Coolant Level
- fuel tank capacity
Lockable anti vandal dashboard protection
Central tyre inflating system
2 Outside mirrors
Indicator and hazard lights
Back-up alarm
Scraper per wheel
Pressure sprinkler system
Warning horn

Options

* ROPS/FOPS with safety belt
* ROPS-cabin with heating
* ROPS cabin with air conditioning
Railing
Sun roof
Special painting
Working lights
Rotary beacon
Lamp guard
Rearview camera
Speedometer
Radio Bluetooth
BOMAG TELEMATIC
Fire extinguisher
Thermal aprons
Cold start device
Edge cutter
Scraper coco mat, spring loaded and tiltable
Scraper brush, spring loaded and tiltable
Environmentally compliant hydraulic oil
Additional weight
- Steel 4.800kg (BW24RH)
- Granulate 5.000kg (BW24RH)
- Granulate 10.400kg
- Granulate 13.100kg (BW27RH)
Waterproof frame
Wheels DUNLOP 11,00-R20
Wheels MICHELIN 13/80R20
Profiled tyres
Tool kit
* Standard delivery with CE conformity (valid within European Union)

Show less

Further data on request / All data subject to change / Illustrations may contain optional features

You can find more information regarding the CO2 emissions of all machines here.

Easy service

Easy, fast servicing.

The wide-opening engine hood provides easy access for servicing work. All service points are easy to access.

Original parts and service

Quality is the best protection for your investment.

When you see BOMAG on a machine, you can expect real quality. This applies both to our original parts and our service. Opting for a BOMAG means choosing top quality every time. Original parts and service are there to protect your investment. They ensure 100% machine power and availability – and ultimately the productivity and cost-effectiveness of your company. BOMAG offers a range of service products to keep you on the road.
