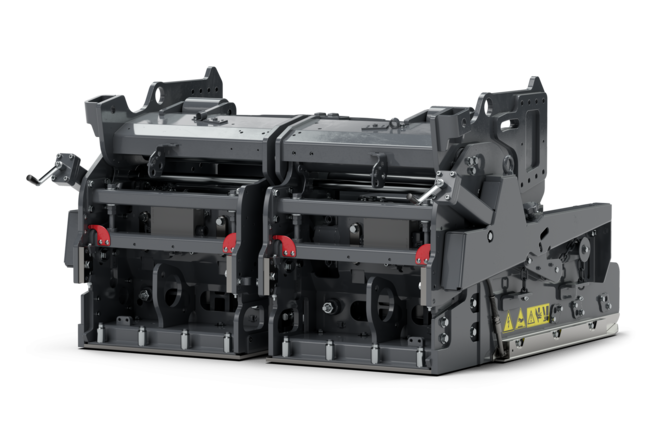

S 200 V screed: Cutting-edge technology in asphalt road construction.

Shorter set-up times.

The screed extension is significantly easier to mount.

Even heat distribution.

No material adhesion and outstanding surface quality.

Particularly durable.

The heating rods are protected against corrosion and wear.

Screeds

S 200 V screed: Cutting-edge technology in asphalt road construction.

Weight 700 kg

Working width (min-max) 1.100 - 3.400 mm

Capacity 200 t/h

Info

Overview

Screed for the BOMAG BF 200 compact paver.

The BOMAG S 200 V screed achieves outstanding paving results and optimal surface quality.

The base screed width is just 1.1 metres. When equipped with BOMAG screed extensions using QUICK COUPLING, the machine can quickly and easily achieve a range of different paving widths up to 3.4 metres: 1.1 m/2.0 m/1.8. m to 2.7 m/2.5 m to 3.4 m

Screed type V is equipped with a vibratory unit. Vibration is generated by an eccentric shaft acting on the screed plate. Amplitude and frequency are perfectly matched.

Request an offer Receive a non-binding offer

Documents

Datasheet Datasheet_S200V_PRE89405010_SA

Brochure Brochure_BF350-5_PRE107418_2501

View all

Gallery

At a glance

Fields of application

Perfect for narrow construction sites and trenches.

The width of the retracted basic screed is only 1.1 m. With reduction shoes, the minimum paving width is just 0.4 m – ideal for special applications such as micro-trenching. It is always possible to pave layers up to 20 cm thick.

The QUICK COUPLING rapid attachment system, in which the screed extension is hooked in and simply bolted, enables shorter refitting times and offers maximum flexibility across all paving widths.

The screed plates are heated particularly evenly due to the increased contact surface compared to standard systems. The result: no material adhesion and thus outstanding surface quality right from the start of paving.

With the innovative MAGMALIFE screed heating and the excellent thermal conductivity of aluminium, the screed is often fully heated in just 20 minutes.

The heating rods in the BOMAG screed are cast in aluminium. This protects them from vibration shocks and corrosion. The component's service life is significantly longer with BOMAG and doesn't require annual replacement.

Technologies

Fast, simple, perfect: That’s what BOMAG’s QUICK COUPLING stands for. A smart, quick attachment system that allows screed extension without fiddly screw fastenings.

ll the heating rods are cast into one aluminium block. Because of the metal’s excellent thermal conductivity, the heat-up time is significantly shorter so that paver and team are ready for operation more quickly.

Documentation

Documents

Datasheet Datasheet_S200V_PRE89405010_SA

Brochure Brochure_BF350-5_PRE107418_2501

Maintenance with a concept

Virtually maintenance-free.

The maintenance of our road pavers is as simple as their operation. The engine compartment with the hydraulic systems is easily accessible from every side, and all the filters can be reached comfortably and centrally from one side. Good ideas, such as the fully automatic central lubrication system – not even the screed requires manual greasing with BOMAG – contribute to the remarkably long maintenance intervals of our pavers.

Original parts and service

Quality is the best protection for your investment.

When you see BOMAG on a machine, you can expect real quality. This applies both to our original parts and our service. Opting for a BOMAG means choosing top quality every time. Original parts and service are there to protect your investment. They ensure 100% machine power and availability – and ultimately the productivity and cost-effectiveness of your company. BOMAG offers a range of service products to keep you on the road.

Learn more

Quality

Guaranteed quality and reliability.

If the label says BOMAG, you can expect top quality. This applies as much to the built-in machine components as it does to Original BOMAG spare parts and BOMAG service. We want your pavers and feeders to keep running.

BOMAG quality

High-quality wear parts ensure a particularly long service life for BOMAG pavers and feeders. The tamper bars are fully hardened, and the screed plates are made of 15 mm thick, wear-resistant steel (Brinell hardness 450).

BOMAG support and training

Our online and classroom training sessions provide valuable know-how for everyday tasks. And you can also rely on our application engineers in an emergency – because they are on the road throughout the world.

BOMAG fleet management

Position, fuel consumption, operating hours – discover the hidden potential that enables you to use pavers and feeders even more efficiently. Your machines are just a mouse click away.

BOMAG Service Kits

BOMAG supplies everything you need for maintenance, wear repairs or daily on-site servicing: operating fluids and Genuine Parts, tailor-made for every BOMAG feeder and paver. Reduce the risk of downtime to a minimum.
