VDA 400 MAX pavers: The most durable and reliable on the market

Норма токсичности выхлопных газов Stage IIIa / TIER3

Вес 12.500 kg

Рабочая ширина (мин-макс) 2.486 - 4.707 mm

Информация

Overview

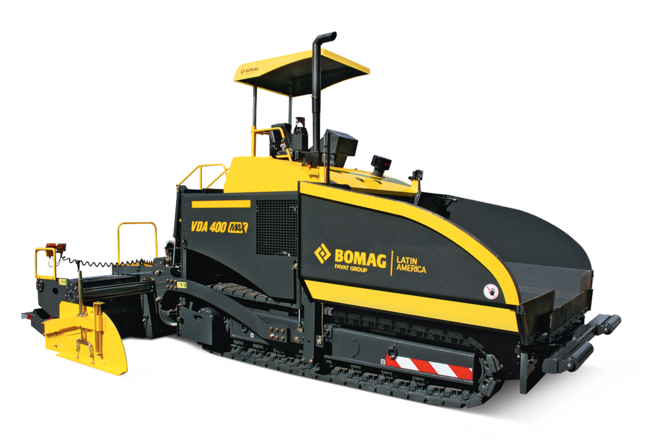

VDA 400 MAX Belt Paver

VDA MAX series pavers are manufactured in Brazil and offer reliability, efficiency, economy and excellent application results. - Perfect visibility: Excellent visibility, through panel and sliding seat - Excellent traction and displacement: Hydrostatic transmission, through motors and gearboxes coupled to the sprocket: synonymous with greater efficiency. - Robustness and high reliability: robustness and high reliability - Quality and efficiency in application: New material conveyor system: guarantees greater robustness and ease of maintenance.

Отправить ссылку на страницу:

Запросить предложение Получите ни к чему не обязывающее предложение

Галерея

С первого взгляда

Fields of application

Asphalt paving with BOMAG pavers guarantees the highest efficiency and quality in road construction.

Ideal for paving on slopes and applying granular base coats. The belts are coated with trapezoidal solid rubber shoes, ensuring high durability. It has a turning radius on the shaft itself, adding ease of movement. High efficiency hydrostatic transmission: ensures smooth paving.

The easy-to-maintain BOMAG concept reduces downtime, ensuring productivity. The reliability of the components avoids increased costs, which is why the VDA series pavers have easy access to all maintenance points, simplifying repairs and lowering costs.

The panel has a display with functions and diagnostics of motor faults, and it also ensures ease of maintenance and operation: For each function, one button!

The VDA series pavers have a high-capacity material receiving compartment with large tilting side wings and an optimum material flow angle. The stop rollers have reinforced spherical plain bearings, equipped with an exclusive cleaning system. Therefore, the pavers manufactured in Brazil are suitable to work with different types of unloading trucks.

High operator visibility due to lateral displacement of the operating position and headlights for night work - 6 headlights for full workplace lighting!

Electronic fuel injection system, in addition, Cummins TIER 3 engines guarantee the reduction of noise and emissions, ensuring the availability of parts through an extensive network of representatives.

Документация

Технические характеристики

Стандарты

Cummins QSB 4.5 TIER III Engine - 130HP (97kW)
Direct drive by tracks with rubber shoes
Direct track drive system
Steering system with joystick control
Highly durable, robust material conveyor system
Conveyors and helicals with material flow control via electromechanical sensors
Laterally movable control station
Reverse alarm
Fiber awning
Colour display with main functions and motor fault diagnosis
Table with hydraulic opening
Gas heating
210 Litre Fuel Tank
Complete visibility of the entire operation
Ease of maintenance
Hydraulically variable width from 2,150m to 4,050m
Gas heating
Heating system (LPG)
Vibrators
Ski with height adjustment
Intuitive control panel (one button = one function)
210 Litre Fuel Tank
Table with hydraulic opening
Yellow strobe beacon
Central module with single plate
Compacting table SPF 2.15
SPF (Simple Plate Finishing) - center module with single plate

Дополнительно

Mechanical extension (4,05 m a 4,55 m)
Reduction of paving width 1,4m - 1,1 m
Electronic longitudinal contact levelling 2 extensions with 0,250m
Electronic longitudinal levelling by contact with 30 cm skiing
Electronic longitudinal levelling by contact with 6 m skiing
Automatic longitudinal leveling via ultrasonic sensor (non-contact)
Electronic cross-levelling by tilt sensor (slope sensor)
Tool Kit
Service KIT
Reduced paving width (Cut-off-shoes)
Reduced paving width to 1,100m
Eletronic leveling control system (MOBA)
1 longitudinal (per contact)
1 longitudinal (per contact) + 1 transverse
2 longitudinal (per contact)
2 longitudinal (per contact) + 1 transverse
2 longitudinal (sonic) + 1 transversal
Ski for electronic levelling system
Skiing from 6 meters to 1 side
Skiing from 6 meters to 2 sides
Tool Box
250 hour revision kit
500 hour revision kit
1000 hour revision kit

Показать меньше

Дополнительные данные по запросу / все данные могут меняться / иллюстрации могут иметь дополнительные функции

Более подробную информацию о выбросах CO2 всех машин вы можете найти здесь.

Maintenance with a concept

Ease and low cost.

The maintenance of BOMAG pavers is as simple as their operation. Since each function is controlled by a single switch, in addition, each switch can be replaced separately. The engine compartment with the hydraulic systems is easily accessible from either side and all filters can be accessed comfortably. The easy-to-maintain BOMAG concept reduces machine downtime, ensuring productivity. To reduce machine downtime, we offer carefully selected emergency and maintenance kits. The reliability of the components prevents increased costs.

Original parts and service

Quality is the best protection for your investment.

When you see BOMAG on a machine, you can expect real quality. This applies both to our original parts and our service. Opting for a BOMAG means choosing top quality every time. Original parts and service are there to protect your investment. They ensure 100% machine power and availability – and ultimately the productivity and cost-effectiveness of your company. BOMAG offers a range of service products to keep you on the road.
