Highway paver BF 800 P: Born for the road.

Perfect visibility.

With the slidable driver’s stand thanks to the SIDEVIEW function.

Optimal ergonomics.

The operating console and seat can be adjusted individually.

Shorter set-up times.

Thanks to QUICKCOUPLING, changeover times are significantly shorter than with other systems.

Outstanding efficiency.

Active engine and hydraulic management help save fuel.

Fastest possible heat-up times.

The screed plate heating rods are cast in aluminium.

Greatest durability.

The heating rods are cast in aluminium and protected against corrosion.

Paver

Highway paver BF 800 P: Born for the road.

Emission stage Stage IIIa / TIER3

Weight 21.000 kg

Working width (min-max) 2.550 - 9.000 mm

Info

Play

Overview

Highway paver: Even builds roads for aeroplanes.

Our heavyweight machines for heavyweight projects. Used wherever high laying performance is required: on motorways, for example, or even on the runway of a major airport.

Highest pre-compaction of up to 95% by means of an infinite vibration and tamper frequency
Longest crawler tracks guarantee best traction
The innovative BOMAG systems ECOMODE, MAGMALIFE, QUICK COUPLING and SIDEVIEW ensure optimal safety and cost-efficiency
Very long levelling plates for perfect asphalt evenness
Proportional control of the augers and conveyor belts by means of ultrasonic sensors
Load control system (L.C.S.) for the screed
Easy and safe transportation due to the hydraulically lowerable roof and the fast fixing of the screed for transport

Request an offer Receive a non-binding offer

Documents

Datasheet Datasheet_BF800P_PRE83765010_SA04

Brochure Brochure_BF223-900_PRE107412_1603

View all

Gallery

Please enable the use of cookies to view this content

Details on the use of cookies can be found in our Privacy Policy

Please enable the use of cookies to view this content

Details on the use of cookies can be found in our Privacy Policy

Please enable the use of cookies to view this content

Details on the use of cookies can be found in our Privacy Policy

At a glance

Fields of application

Asphalt paving with BOMAG pavers guarantees the highest efficiency and quality in road construction.

With BOMAG pavers you can choose the optimal road paver for your application from a wide range of products (5-21 t). We offer a vast array of machines and equipment from the flexibly-deployable pedestrian road paver to the heavy-duty paver.

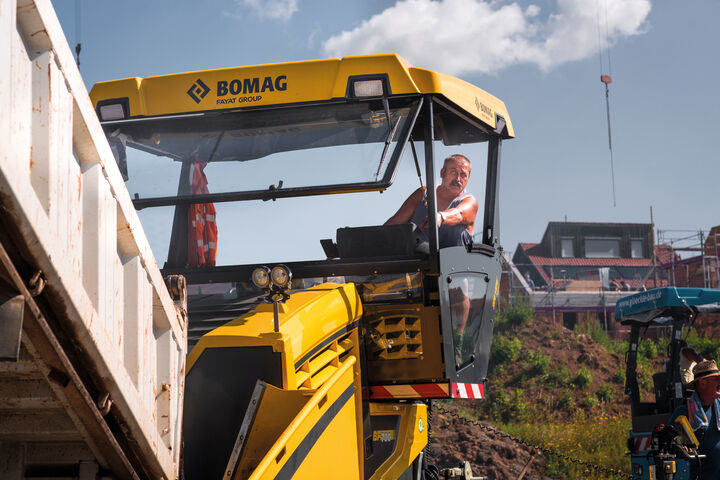

With the slidable operator’s stand and SIDEVIEW function.

The control panel and seat of the Sideview system can be individually adjusted to the driver.

The user-friendly QUICK COUPLING system ensures greater flexibility on the construction site.

ECOMODE, the smart engine and hydraulic management system, ensures optimum performance and lower fuel consumption.

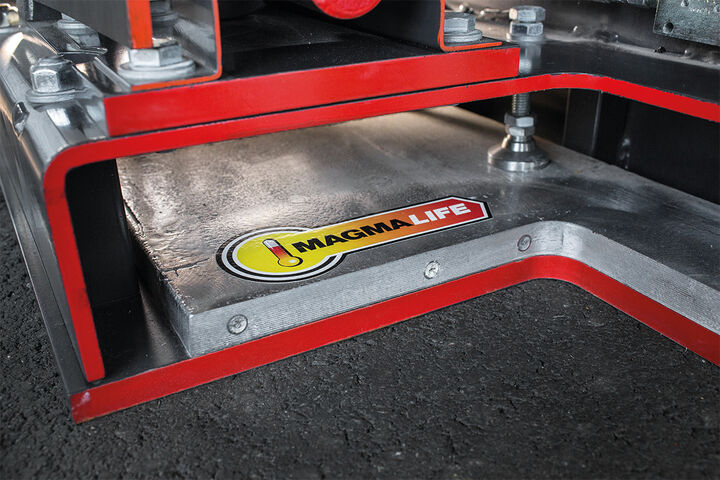

The innovative MAGMALIFE screed heating is ready for operation two times faster than conventional systems.

The heating rods are cast in aluminium to protect them against vibration impacts and corrosion. This makes MAGMALIFE screed technology exceptionally durable.

Technologies

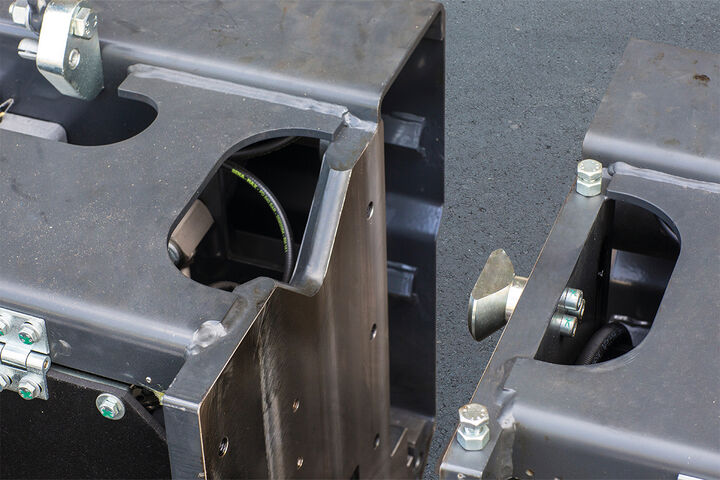

Fast, simple, perfect: That’s what BOMAG’s QUICK COUPLING stands for. A smart, quick attachment system that allows screed extension without fiddly screw fastenings.

ll the heating rods are cast into one aluminium block. Because of the metal’s excellent thermal conductivity, the heat-up time is significantly shorter so that paver and team are ready for operation more quickly.

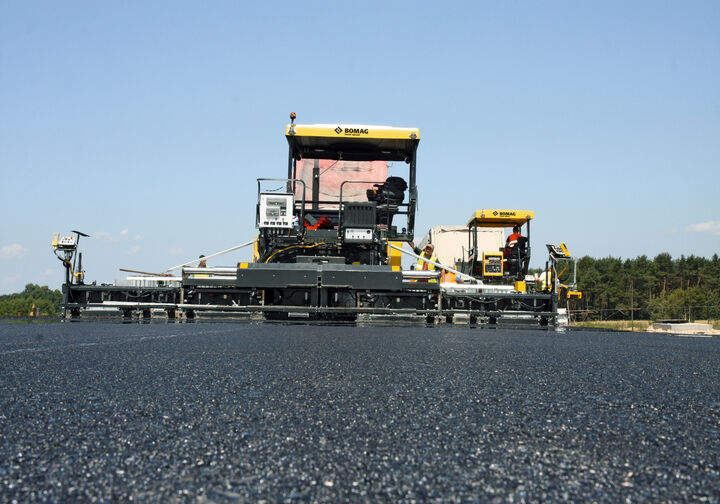

Pre-compaction with the BOMAG high-performance screed is the result of combining the vibration of the screed plates and the frequency of the tampers.

Documentation

Documents

Datasheet Datasheet_BF800P_PRE83765010_SA04

Brochure Brochure_BF223-900_PRE107412_1603

Brochure Service-Brochure_Paver_PRDE115005_1903

Specifications

Standards

SIDEVIEW
Driver‘s seat: with swivel and side- shift
Protection, dashboard
Hydraulic hinged roof
Digital display for machine management
Separate control of hopper wings
Cleaning kit
Hydraulic, height adjustable auger
Track scraper
L.C.S. Screed relief and traction increase system
Screed temperature control
Cast heating elements
Automatic screed heating
Hydraulic screed control
Crown adjustment
6 work lights
Side control of auger/scraper belts
Tools
6 x 6 all wheel drive
30 kVA generator
Socket 2 x 240 volt
2 proportionally controlled and reversible wear-resistant cast augers, screw blades separately replaceable
2 independent and reversible scraper belts, high- wear resistant plates

Options

Hydraulic hopper front flap
Hydraulic/electric movable platform
Hydraulic crown adjustment
Hinged side plates
Heated side plates
Side windscreened platform
Seat warmer
Asphalt steam extraction
Biologically degradable hydraulic oil
Central lubrication system
L.C.S. half-sided
Optional paint finish
S 500 + S 600 extensions: 250 mm, 500 mm, 750 mm, 1250 mm
Reduction shoe
Edge shaper 45°/60°
Light balloon
Socket 2 x 240 volt
Levelling systems: Height and cross-slope sensing by means of ultrasonic or mechanical sensors

Show less

Further data on request / All data subject to change / Illustrations may contain optional features

You can find more information regarding the CO2 emissions of all machines here.

Maintenance with a concept

Virtually maintenance-free.

The simplest and most cost-effective service is the one that isn’t necessary. The maintenance of our road pavers is as simple as their operation. As every function is controlled by its own switch, every switch can also be replaced separately. The engine compartment with the hydraulic systems is easily accessible from every side, and all the filters can be reached comfortably and centrally from one side. Good ideas, such as the fully automated central lubrication system, contribute to the remarkably long maintenance intervals of our pavers. To keep any downtimes as short as possible, we offer carefully selected maintenance and emergency kits.

Original parts and service

Quality is the best protection for your investment.

When you see BOMAG on a machine, you can expect real quality. This applies both to our original parts and our service. Opting for a BOMAG means choosing top quality every time. Original parts and service are there to protect your investment. They ensure 100% machine power and availability – and ultimately the productivity and cost-effectiveness of your company. BOMAG offers a range of service products to keep you on the road.

Learn more

Quality

Guaranteed quality and reliability.

If the label says BOMAG, you can expect top quality. This applies as much to the built-in machine components as it does to Original BOMAG spare parts and BOMAG service. We want your pavers and feeders to keep running.

BOMAG quality

High-quality wear parts ensure a particularly long service life for BOMAG pavers and feeders. The tamper bars are fully hardened, and the screed plates are made of 15 mm thick, wear-resistant steel (Brinell hardness 450).

BOMAG support and training

Our online and classroom training sessions provide valuable know-how for everyday tasks. And you can also rely on our application engineers in an emergency – because they are on the road throughout the world.

BOMAG fleet management

Position, fuel consumption, operating hours – discover the hidden potential that enables you to use pavers and feeders even more efficiently. Your machines are just a mouse click away.

BOMAG Service Kits

BOMAG supplies everything you need for maintenance, wear repairs or daily on-site servicing: operating fluids and Genuine Parts, tailor-made for every BOMAG feeder and paver. Reduce the risk of downtime to a minimum.

Successful Projects

Quality speaks for itself.

Successful Projects: Focus on asphalt paving.

The paver for network expansion.

Staggered paving and three BOMAG pavers in operation.

Road construction with warm mix asphalt.

The key parameters at a glance.

The home of BOMAG asphalt pavers.

Alfonsine is located in the very east of the legendary Motor Valley. This is where BOMAG develops and manufactures construction machines of outstanding quality – with an eye for crucial details and a knack for absolute precision.
